Semiconductor fabs need the exact same penetration on those ultra-thin gas lines every time. Power generation plants have to meet tough codes for full-penetration welds on heavy-wall pipe, and mistakes just aren’t an option in that environment. Most equipment salespeople won’t tell you how electrical phase actually changes the way your arc behaves or explain why a 200-amp single-phase machine performs differently compared to a 200-amp three-phase unit!
When you pick between these power types, the equipment price tag is one part of what you’ll need to look at. Usually, it depends on what electrical capacity your facility already has available. Maybe your shop already has three-phase service. But there’s no extra capacity left over to run another welding machine. Mobile welding contractors run into this all of the time – they show up at a job site, and all that they have to work with is a standard household outlet.
Inverter technology has become much better over the years, and it’s made the difference between the single-phase and the three-phase capabilities much smaller than it used to be. Of course, basic electrical physics still sets the limits on what you can do with pretty demanding applications.
We’ll go over these power options so you can choose the right setup for your welds!
Pick the Right Power for Your Welder
Single-phase and three-phase power each deliver electricity to your welding equipment. But the way they work is pretty different. Single-phase power delivers electricity in pulses because it only uses one alternating wave. An engine with a single piston works in the same way – it fires, stops, then fires again in a steady rhythm. Three-phase power uses three separate waves that all run at the same time, and they overlap with one another to give you a much steadier, even flow of electricity.
The choice between these power systems can seem like too much before you’ve had a chance to look at any welding equipment. Electrical contractors have a habit of making this whole conversation sound much easier than it is. Most of them will talk about the power options for orbital welding systems and tell you that either one is going to work just fine for your application. What they don’t usually mention is that these two systems don’t work the same way at all, and those differences matter quite a bit when you’re out there trying to get reliable welds.
Power flow matters quite a bit for orbital welding machines. Single-phase power pulses up and down in a predictable rhythm – the alternating wave moves in this way through a single conductor. Three-phase power keeps a much more stable level because you have three separate waves that overlap with one another, and they fill in the valleys that come between each pulse. Your welding equipment ends up working with two very different electrical environments, depending on which type of power you’re working with.

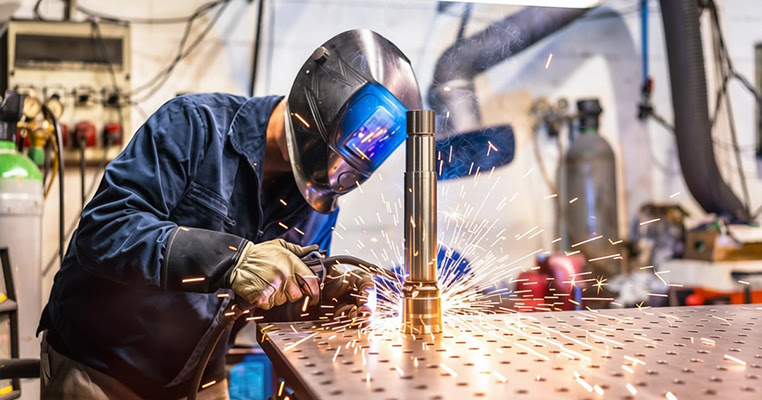

How Power Type Affects Your Welds
Three-phase power delivers electricity in a smooth, nearly steady stream to your welder, and the voltage ripple stays well under 5% throughout the entire welding process. Single-phase power works a little differently – it pulses at around 120 cycles per second instead. Even at that speed, the welding arc shows visible differences.
Single-phase systems have a ripple effect, and this creates small power variations in your arc. It’ll change how much heat actually goes into the base material. Pharmaceutical companies weld plenty of sanitary tubing, and when they use single-phase equipment, the weld beads don’t always look the same from one to the next. The small power pulses affect how the weld pool acts, and this causes the uneven appearance on your finished bead. Aerospace welding is a great example of how these power differences actually matter in applications. Titanium parts are extremely common in the aerospace industry. Welding them with single-phase power usually creates color variations across the weld.
Penetration consistency matters quite a bit for structural integrity and for code compliance. Three-phase systems give you steady, reliable power throughout the entire welding process, so your penetration depth stays uniform from the start to the finish. Single-phase systems have these little pulsations in them that cause small variations in how deep the weld actually penetrates. We’re talking about some small differences here – sometimes just fractions of a millimeter. Those small inconsistencies become a big problem when you have to produce the same exact results over and over again across hundreds of joints.
Thin-wall applications are where this difference matters the most, especially when you need precise heat control to produce welds that pass inspection instead of ones that get rejected. That 5% ripple creates microsecond-level fluctuations in the arc energy during the welding, and those fluctuations have a direct effect on your final weld quality.

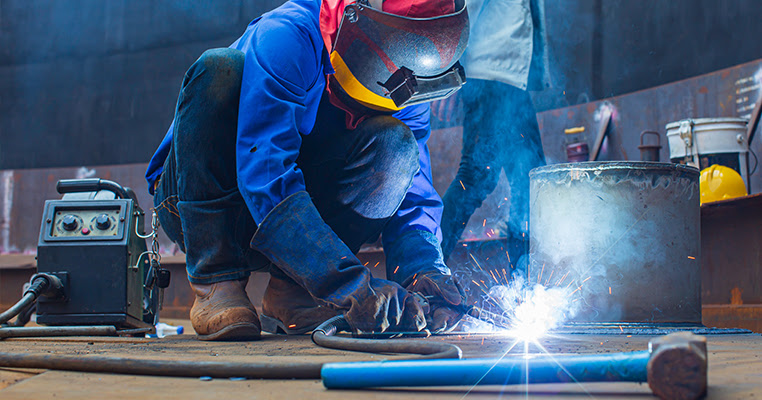

Power Comparison
Arc stability matters when you’re comparing these two systems, and it’s worth taking into account. Power output is another big area where three-phase and single-phase units start to separate. Three-phase equipment can push anywhere from 200 to 600 amps, depending on the configuration. Single-phase machines work a little differently – most of them will cap out between 200 and 250 amps under the best conditions.
Oil and gas contractors run into this when they are working with schedule 80 pipe. Single-phase machines just don’t have enough power to generate the heat needed for full penetration through material that thick. The welds fail inspection because they don’t penetrate deep enough into the joint, even when the surface looks okay.
Three-phase power supplies are built to run for hours and hours without needing to take a break. Single-phase units have to stop and cool down after you’ve been running them for a while. This limitation can become a big problem when you’re working on long production runs or you’re up against a tight deadline.
Three-phase systems are also a lot more efficient in terms of electrical consumption. We’re talking about a 73% increase in efficiency with the switch from single-phase to three-phase power. For a fabrication shop that has the welding equipment running throughout the day, that difference stacks up pretty fast on the monthly electric bill. You’ll spend less money to get the same amount of welding work done with three-phase power compared to what you’d pay with single-phase.

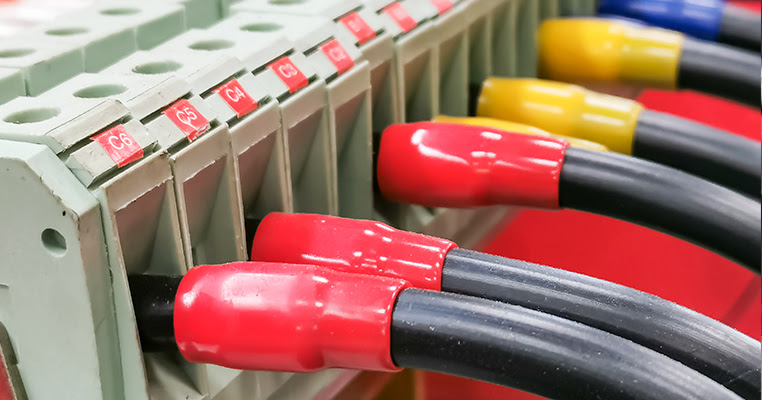

Cost and Setup for Your Welder
Single-phase orbital welders are going to cost you somewhere around 20% to 30% less than three-phase models. When you compare the two and try to decide which one makes sense for your shop, that upfront price difference is going to be a part of your choice. Three-phase units actually have some extra costs on top of the machine itself, and most buyers miss this detail until after they’ve already made their decision.
A three-phase welder won’t work with a standard wall outlet in your shop – it just can’t handle that power. You’ll need to hire an electrician to install the right electrical setup for it, and that’s probably going to cost you between $5,000 and $15,000 – it’s a large expense before you’ve even had a chance to fire up the machine and run your first bead.
Mobile welding contractors run into a bit of a challenge with their equipment choices. Most of them wind up with single-phase equipment even though they know it won’t perform quite like three-phase alternatives. The main factor usually depends on availability – most job sites don’t have three-phase power to work with. A contractor can’t show up at a client’s property and reasonably expect them to install custom electrical infrastructure just for one welding project (that would be absurd).
Fabrication shops run into this in the upgrade season. The building’s three-phase service is already at maximum capacity, so any more three-phase equipment means that you need a full electrical system upgrade across the entire facility. Projects like this wind up shutting down production for weeks as the costs spiral well past what anyone had budgeted for.
Three-phase units can run for 15 years or more when you take care of them right. Single-phase machines are a bit of a different story – especially if you run them hard every day, you’re probably looking at 8 to 10 years before you’ll need to replace them. Those extra years add up, and three-phase equipment starts to look much better from a cost perspective, assuming you’ve already got three-phase power set up in your shop.

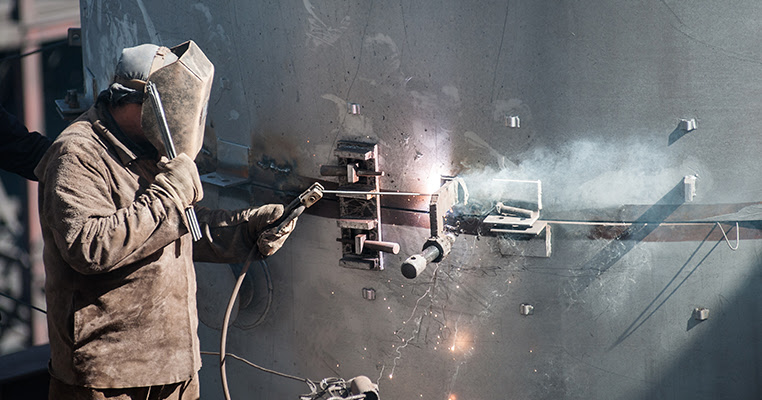

Match Your Power to Material Thickness
Most biotech shops that work with thin-wall tubing get great results from the single-phase power. We’re talking about places where the tube walls measure under 0.065 inches, and single-phase setups work really well for this application. The amperage stays manageable across different jobs, and the welds turn out the same each time.
Power plants are a whole different beast. The pipe that they work with has much thicker walls – we’re talking about over 0.125 inches in most cases. All that extra thickness means you’ll need a lot more heat and a steady, reliable power source to get the job done correctly.
A few years back, some semiconductor fabrication plants ran their own tests on this exact question. They needed to weld ultra-thin stainless steel gas lines throughout their cleanrooms, and they wanted to see which equipment would give them the best results. Once they completed their testing and comparisons, they ended up with the single-phase equipment for the entire operation. The welds met all their quality standards, and the simpler power infrastructure made the whole installation much easier to manage.
Travel speed is a much bigger part of the decision when you look at welding equipment. With three-phase power, the weld head can move quite a bit faster along the joint, and the speed difference piles up fast over the course of a full workday. Production environments where you’ll have to get through hundreds of welds each day are going to benefit from that faster pace.
Single-phase machines still produce quality welds and work great for what they’re designed for. But they’re a better fit for jobs where you can afford to take a bit more time on each weld.
Check how much amperage your job needs. If it’s more than 150 amps, three-phase is usually your best bet. Anything under that threshold, and the single-phase will take care of the job just fine. The same guideline applies whether you do manual welds or run the automated orbital systems.
How New Tech Changes Power Choices
Modern inverter technology has started to change the conversation around single-phase versus three-phase power substantially. Inverter power supplies can take a single-phase input and convert it with high-frequency switching circuits combined with feedback control systems. These systems are pretty advanced, and you end up with a steady power output that comes very close to what you’d expect from traditional three-phase systems.
A few pharmaceutical businesses have actually made the switch from their old three-phase units to these newer single-phase inverters, and it went really well. They managed to keep all their validation standards in place throughout the entire transition. When an industry as heavily regulated as pharmaceuticals can make the change to newer inverters without compromising any of their compliance standards, it shows just how mature and reliable these systems have become.
Modern waveform control is the technology that made this possible. Single-phase welders with this control system built in take care of the same work that used to only be possible with three-phase power. The control system monitors your output and makes small adjustments in real time to compensate for the limitations of a single-phase input.
High-end single-phase inverters are expensive pieces of equipment. The extra electronics and advanced control systems have to be accounted for somewhere, and they will add to your starting investment.
True three-phase power still has a devoted following in some industries. Plenty of shops swear by it for their most demanding applications, where they just can’t afford to compromise on reliability. The natural stability that comes with three-phase is pretty hard to match when you need performance that delivers the exact same results every time.
Where The Pros Get Their Welding Rentals
The right power choice depends on the type of projects you usually run. When you’re mostly working with thin-wall tubing jobs and don’t have big production volumes to worry about, modern single-phase equipment works well for that, and you’ll save yourself the cost and hassle of an electrical upgrade. But with heavy-wall applications where you’ll have to meet high production rates day in and day out (we’re talking day after day without slowdowns), three-phase power still gives you some benefits that are pretty hard to beat.
Before you make a final call on which power type to go with, try to get your hands on some rental equipment or demo units if at all possible. Test each option with the same materials you’ll use in your own shop, and you’ll see for yourself how each system works with your exact tube sizes, the wall thickness you work with and the weld schedules you run every day – no more guessing or believing the sales claims.
That hands-on experience will make you feel way better about whatever machine you choose, and you’ll already know it’s a solid fit for your work, your budget and the space and power you have available in your shop.
